RehaGait – Mobile Gait Analysis

What ist RehaGait?

RehaGait is a completely portable system that takes minutes to set up. In just moments, you can record, analyze and report on one’s gait patterns which makes it ideal for gait analysis on the go. The RehaGait system allows you to gather comprehensive data to support your scientific research.

RehaGait

Structured subjective observation is the key element of gait analysis. Being able to examine gait from top to bottom and acknowledge any problems has long been seen as the quickest and most effective way. RehaGait is designed to quantify the observation. The technology can be used to track interventions over time with a measureable reporting that is increasingly required to receive objective data. The flexibility of the RehaGait system allows the user to get fast, accurate measurements in everyday situations. The RehaGait system includes easy to use and intuitive software that allows you to review the data quickly and to make adjustments to your analysis.

What does RehaGait do?

RehaGait is designed to strengthen subjective diagnosis by quantifying and refining what can be seen and helping to detect and track changes over time. RehaGait comes with up to 7 straps and MotionSensors which can be fitted to the feet, lower legs, thighs and hip. The ideal walking distance is about 20 meters. During walking, the foot movement is measured, especially the patterns of acceleration and angular velocity.

Messung mit RehaGait

What are the advantages of RehaGait?

Objective results, combined with integrated video capture function allows you to monitor the individual's condition, determine problem areas, assess the gait quality and identify asymmetries in the lower limbs.

  • Intuitive handling
  • Mobile use
  • Objective data
  • Results and course of the therapy are shown graphically
  • No need for a gait lab, you can use it outside or on a treadmill
  • Complete freedom of movement

Gait quality
Detailed analysis supplies information on the functional aspects of movement. By comparing the results with reference values, problems can be identified and evaluated.

Ensuring a high quality
The progress made and the success of treatment can be documented during the research process. "Pre" and "Post" measurements are represented as graphs, allowing a direct comparison.

Research Progress
Regular measurement illustrate the progress and are helpful in the decision process for further intervention.

How does RehaGait work?

The RehaGait Analyzer is the ideal support in a scientific context to reliably examine and evaluate gait patterns. The detailed analysis provides information about functional aspects of movement. The comparison with reference values allows deficits to be identified and assessed.

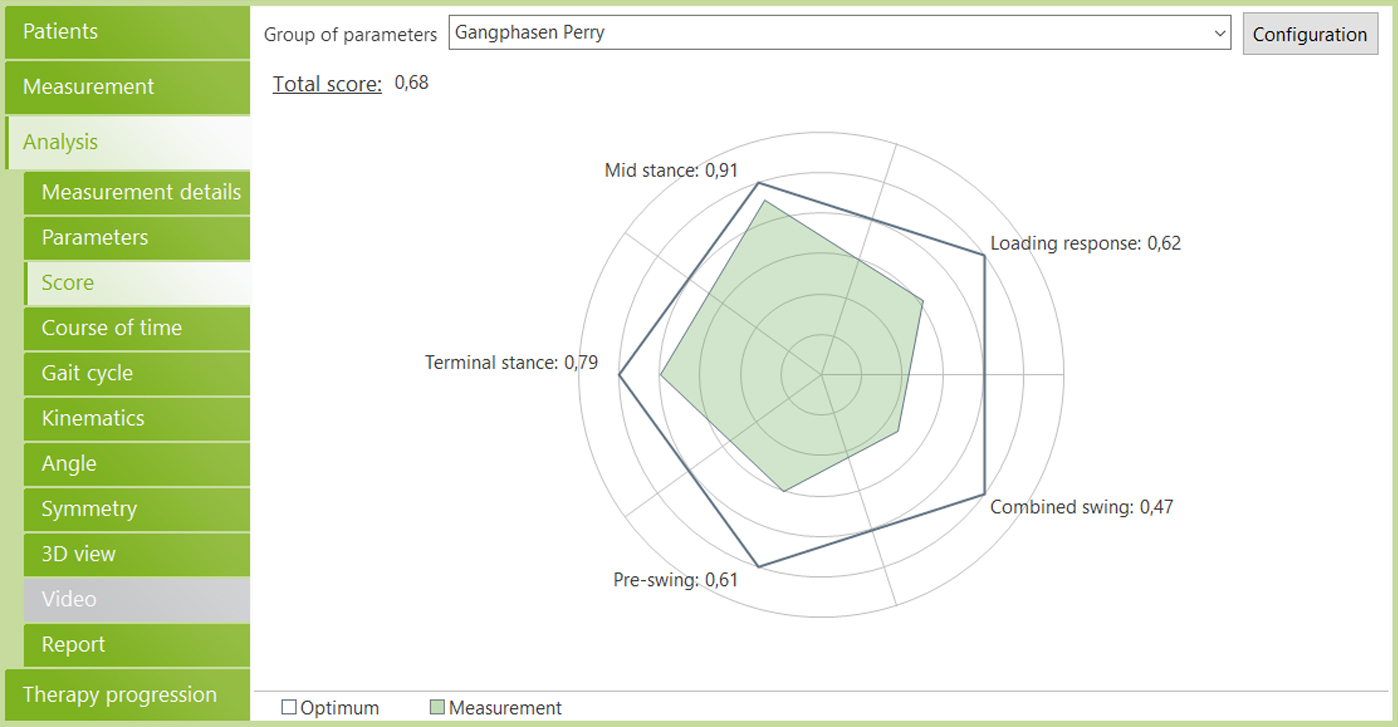

RehaGait - Score-Screen

What data will I receive after a 10 step cycle?

RehaGait includes an easy to use and intuitive software that allows you to review the data and make adjustments to your treatment program. Many different parameters, such as duration, frequency, length and number of steps, as well as speed, gait phases, the angle of the foot, ground clearance and circumduction can be evaluated with RehaGait. The analysis of the therapy progression may take some seconds depending on the number of measurement since the measurements are recalculated.

After a successful analysis, you will find the flow charts sorted by parameter group. The course of parameters is shown as score model. The recorded value is compared with a maximum of 1.0 to the reference value median of the corresponding parameter. The individual measurement sessions are indicated on the horizontal scale and the corresponding score points are linked to a regression line. Thus, increasing straight lines between the measurement session points show an improvement of the parameter. A selection box allows you to use predefined groups to select gait parameters.

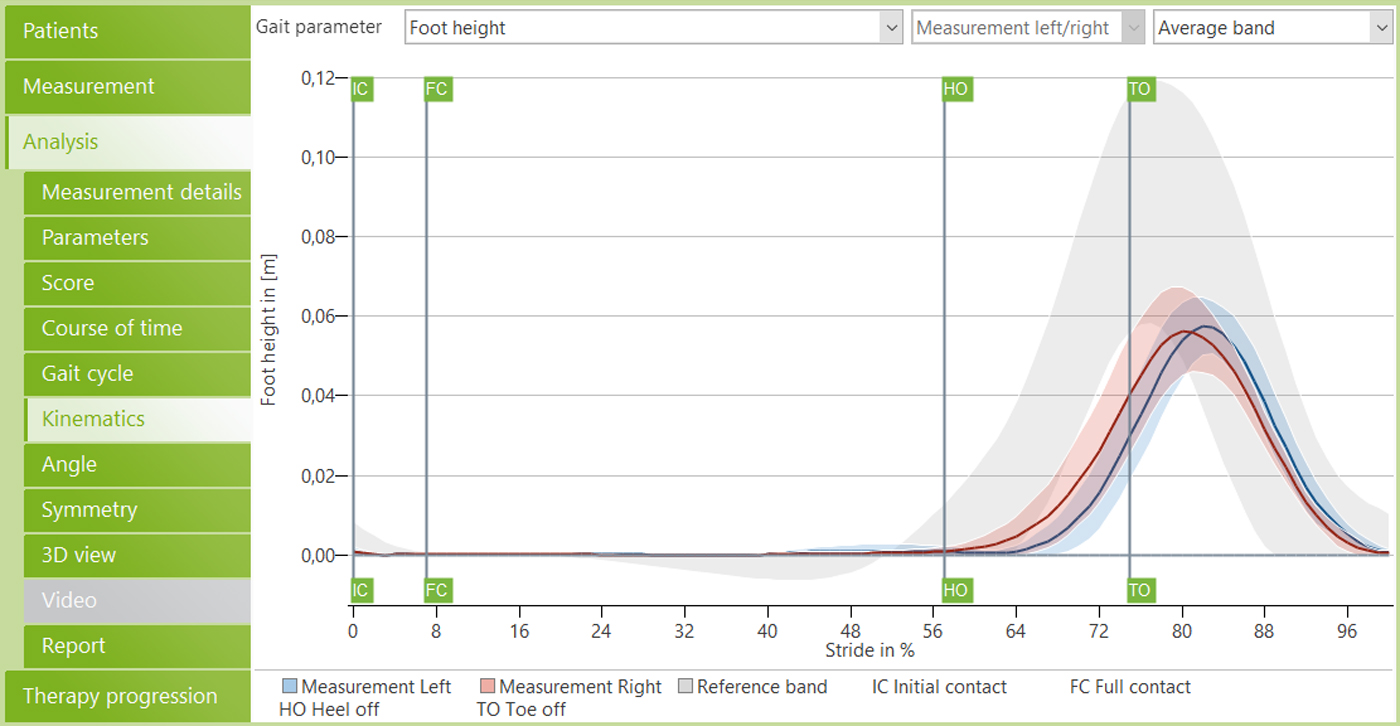

RehaGait-Kinematics-Screen

How is the Kinematic displayed?

The kinematics of the individual steps are displayed for such parameters as foot height, ground clearance, circumduction, velocity and acceleration. The representation of the left side is displayed in blue and for the right side in red. The mean value band (brightened hue of the respective side) represents the respective minimum and maximum of each step, the line representing the corresponding mean value. With the right selection box, you can also display the individual steps next to each other. A grey band in the background represents a reference range that is calculated for each percent in the gait cycle from the respective 5th to 95th percentile of a healthy reference group.

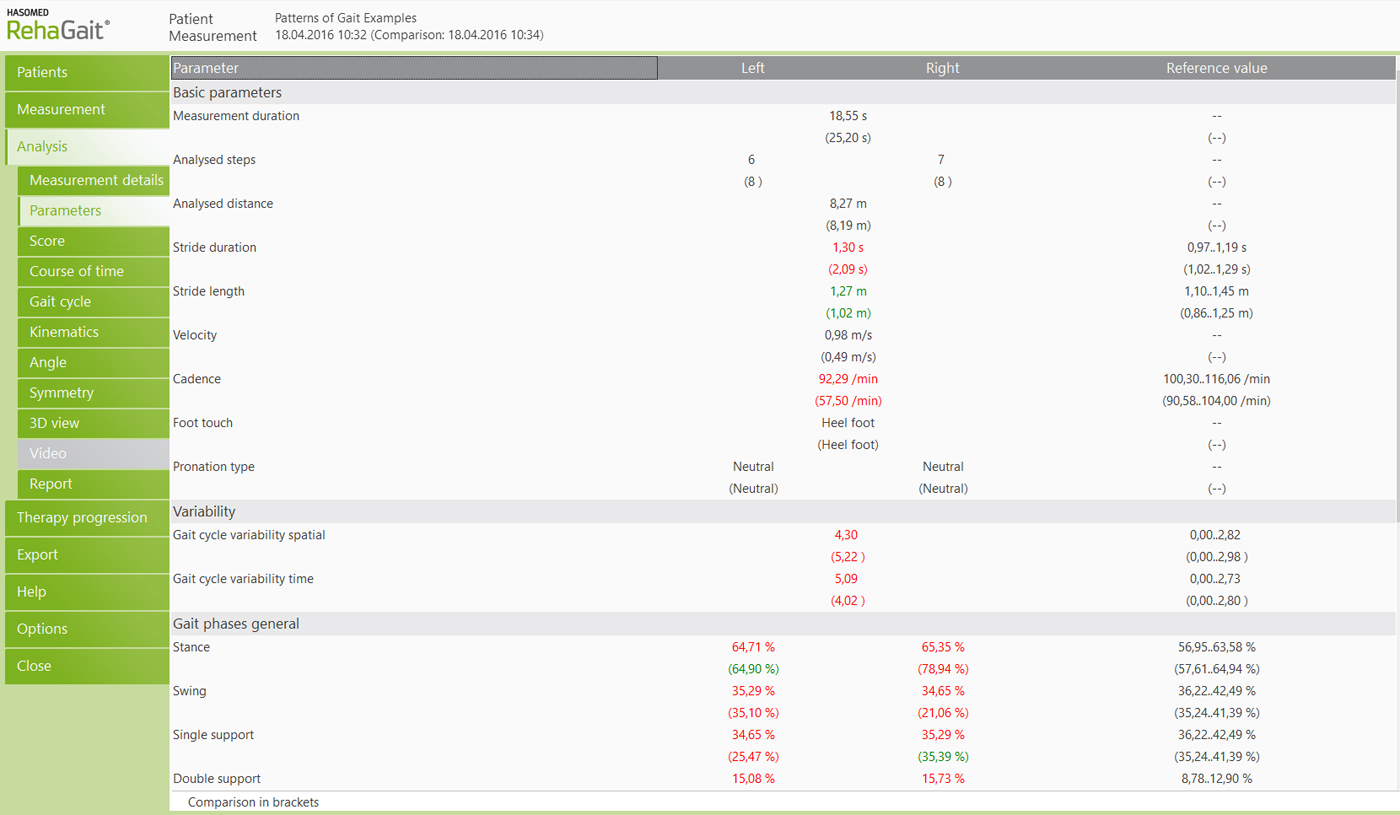

RehaGait_Parameter-Screen

How does the comparison work?

RehaGait analysis software uses a database for user management and storage of analysis results. In this way, the user has at any time access to older measurements in order to compare them to each other or to present and evaluate progress parameters. Here comparison parameters were shown in brackets.

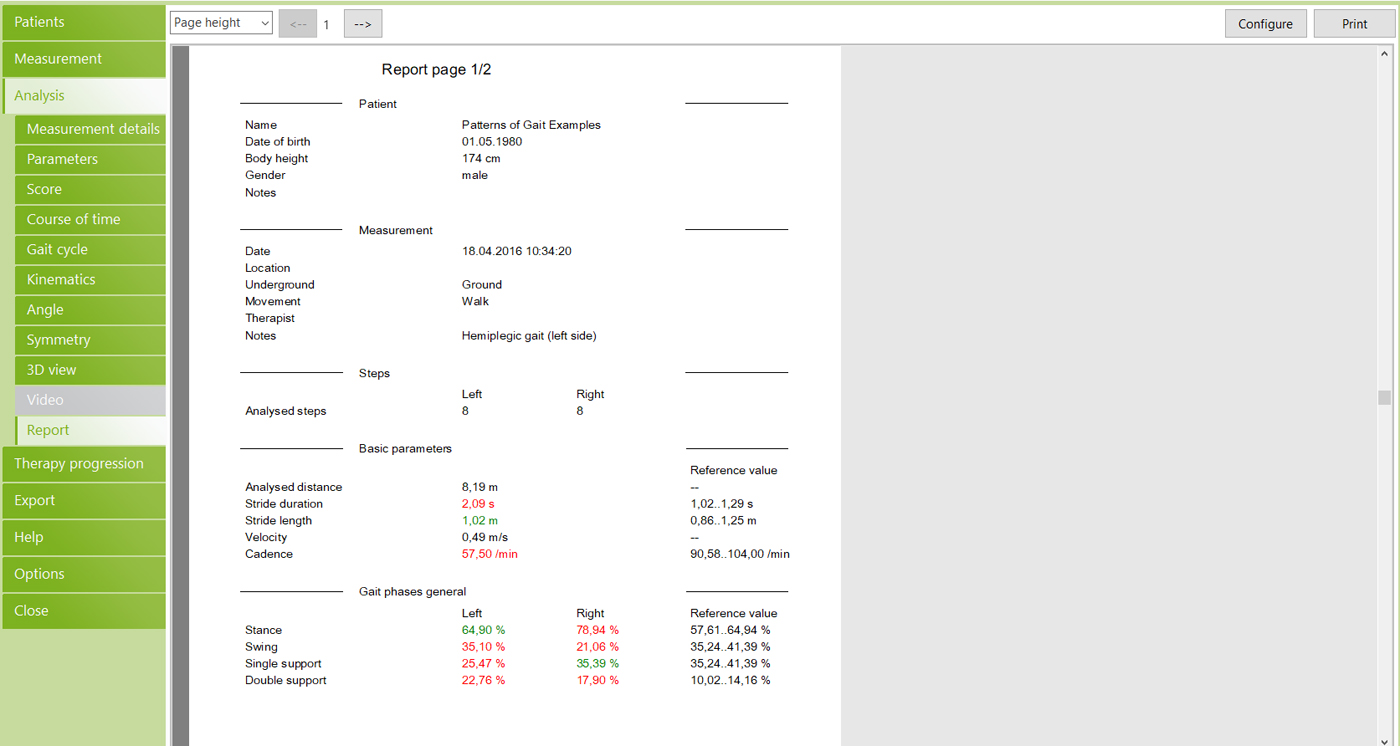

RehaGait_Report

How does the report function work?

The system gives the practitioner the ability to export information and send to referrers or other practitioners working in a multidisciplinary sense. To report your results, you can create and print a report. The report is created for the analyzed measurement of the selected individual. If you have analyzed two measurements for a comparison, both measurements are shown in the report.

Do you already know the newsletter of HASOMED GmbH? Here you will receive all information about updates, product enhancements as well as current offers and dates.

How can I get to know RehaGait?

Medica 2019: Innovative HASOMED medical devices at the World Forum of Medicine

The UN forecasts a world population of more than 9.7 billion people by 2050. A challenge for medical care and a task that physicians and manufacturers of medical technology can master together. Medica 2019, World Forum of Medicine, creates the link between medicine and medical technology, present and future. HASOMED is there.

Mar
6
Fri
2020
7th Baltic Congress of Speech and Language Therapists in Riga @ Riga, Latvia
Mar 6 – Mar 7 all-day

RehaIngest – the new device for pharyngeal swallowing behaviour evaluation, monitoring and rehabilitation will be presented at the conference. Daina Visockiene of Medlinkas UAB, sales partner of HASOMED for Lithuania, gives a lecture on RehaIngest (7.3., 10 – 11 o’clock in room 107)

Language: English (without translation)

Apr
23
Thu
2020
The Asia-Oceanian Conference of Physical & Rehabilitation Medicine (AOCPRM) @ Jeju, Korea
Apr 23 – Apr 26 all-day

Under the theme “Innovative Rehabilitation in Asia Oceania”, the diverse disciplines of Physical & Rehabilitation Medicine from the present to the future will be in focus. With emphasis on innovation, distinguished speakers, professionals and researchers from various countries will present their latest findings from on-going and completed clinical trials.

May
2
Sat
2020
CYBATHLON – moving people and technology @ SWISS Arena
May 2 @ 9:00 – May 3 @ 18:00
  • Races in six disciplines
  • Two-​day competition, attractive supporting programme and scientific symposium
  • The Italian team POLIMI RehaMove participates on behalf of the Politecnico di Milano in the category FES Bike teams.
Aug
30
Sun
2020
XXIX Congresso Brasileiro de Neurologia / XXIX Brazilian Neurology Congress @ Serra Park, Gramado
Aug 30 – Sep 2 all-day

Congress for Neuropsychologists

Oct
8
Thu
2020
10th ESSD Congress Dysphagia in rare disorders @ Palau de Congressos de Girona
Oct 8 – Oct 10 all-day

Congress on Dysphagia in rare disorders

Which RehaGait versions are available?

HASOMED offers two options for mobile gait analysis. To use RehaGait effectively, motion sensors and the special RehaGait software are required.

RehaGait_System_Analyzer

RehaGait Analyzer for scientific purposes

Parameters

Product Content

Step frequency

Analysis software for MS Windows

Step length

2 motion sensors

No. of steps

1 Windows Tablet incl. protective case

Speed

1 pair of foot straps (left and right)

Walking phases

2 USB charging adapters for the sensors

Running phases

1 battery charger

Angle of foot

Carrying case

Ground clearance

Instructions for use

Circumduction

RehaGait_System_Analyzer

RehaGait Analyzer Pro for scientific purposes

Parameters

Product Content

Step frequency

Analysis software for MS Windows

Step length

2 motion sensors

No. of steps

+ 5 motion sensors

Speed

1 Windows Tablet incl. protective case

Walking phases

1 pair of foot straps (left and right)

Running phases

+ 2 lower leg straps

Angle of foot

+ 2 thigh straps

Ground clearance

+ 1 hip strap

Circumduction

2 USB charging adapters for the sensors

+ Ankle joint angle

1 battery charger

+ Knee joint angle

Carrying case

+ Hip joint angle

Instructions for use

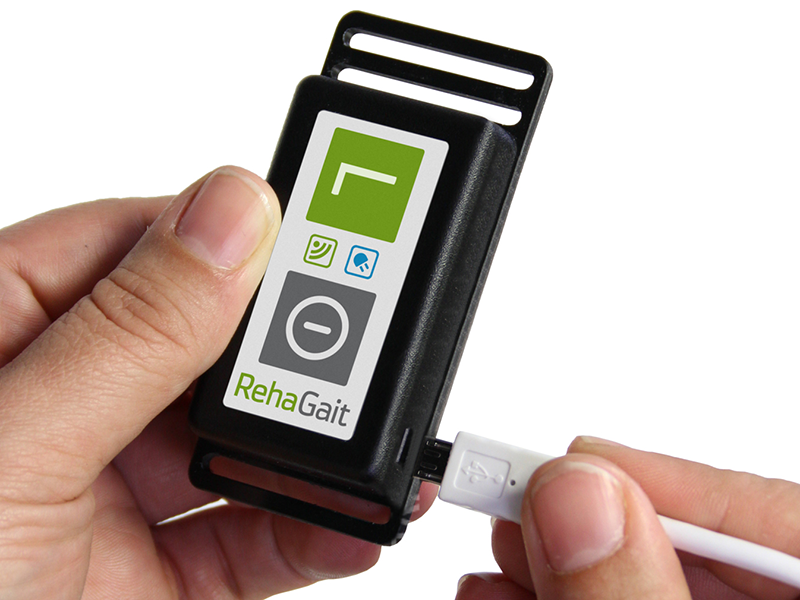

What is a Motion Sensor?

RehaGait - Motion Sensor

The RehaGait Analyzer is equipped with up to 7 inertial sensors, which record spatio-temporal specific parameters during walking. The accuracy is clinically valid according to the gold standard and has been published several times in scientific studies (Schwesig et al., 2010, Donath et al., 2016). These sensors utilize the inertia of the mass to detect movement changes. The inertial sensors consist of a three-axis accelerometer for recording the linear acceleration, a three-axis gyroscope for recording the angular velocity and a three-axis magnetometer for recording the earth's magnetic field.

The MotionSensors are attached at 7 points; around the waist, above the knees, above the ankles and on the proximal, lateral aspect of the foot or shoe. The motion sensors connect via Bluetooth to the tablet software and can be read from up to 20m away.

How does the RehaGait Software work?

RehaGait_Parameter-Screen

The RehaGait software comes pre-programmed on the included Windows tablet, this intuitive system allows you to perform the recordings quickly and easily and view the gait patterns on the tablet. All the most common functions are presented in an easy to navigate left-hand menu rather than buried in multiple complex menus. A custom report can be generated within 10 minutes of your subject walking through the door!
